| Specyfication |
Charger
|
| Features |
- Suitable for 12V and 24V lead-acid wet, gel, and AGM batteries
- Battery capacity: 1.2Ah – 180Ah(12V), 1.2Ah-90Ah (24V)
- Protections: Short-circuit / Overvoltage
- Selectable charging current: 1A/3A/ 6A (12V), 1A/3A (24V)

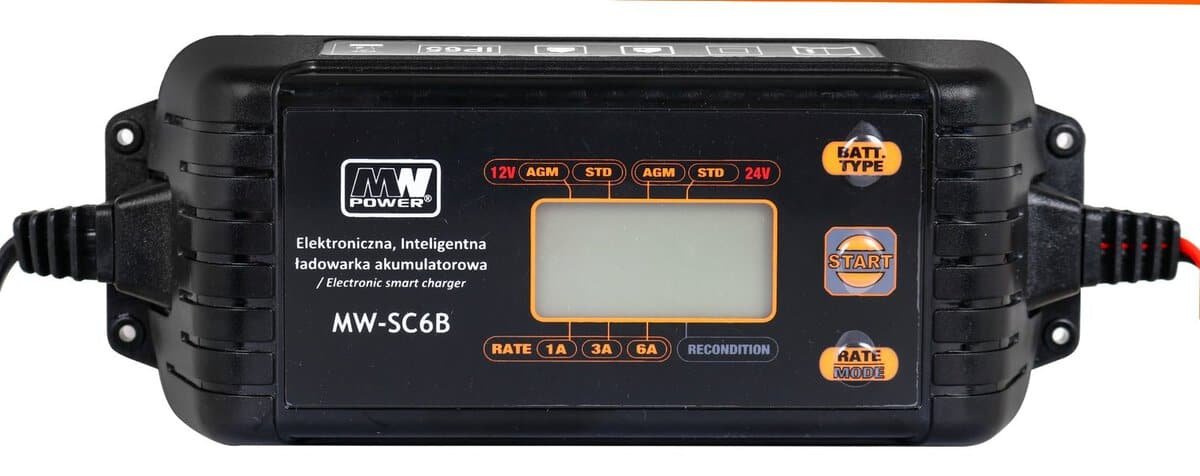

- LCD display, user-friendly interface, microprocessor controlled
- Battery status detection, desulfation mode
|
| Input |
- Input voltage: 220-240V (50Hz)
- Input current (max.): 0.75A/230VAC
|
| Output |
- Output voltage (max.): 14.7V – output current 1A / 3A / 6A (selectable)
- Output voltage (max.): 29.4V – output current 1A / 3A (selectable)
|
| Protection |
- Overvoltage >16VDC (12V mode), >32V (24V mode), output voltage disconnection
- Short-circuit: Output voltage disconnection, display notification
|
| Working Environment |
- Operating temperature: -5 to +40 degrees celsius
- Operating humidity: 20-90% (relative humidity, non-condensing)
- Storage temperature and humidity: -10 to +60 degrees celsius, 10-95% (relative humidity, non-condensing)
|
| Safety Standards |
- Safety standards EN 60335-2-29:2004 + A2:2010; EN 60335-1:2012 + A11:2014
- EMC standards EN 55014-1, EN 61000-3-3, EN 55014-2, EN 61000-3-3, EN-61000-3-2
|
____________
RMZb2b | ID: 14542 | Simbol: CZZ.LAD.MW-SC6B | EAN: 5902135124062
Dimensiune: 22x9x5
Greutate: 0.625000
